WELCH ALLYN CP150 printer head PN KA2008-AF10Z Patient monitor Printhead

Descrizione di prodotto

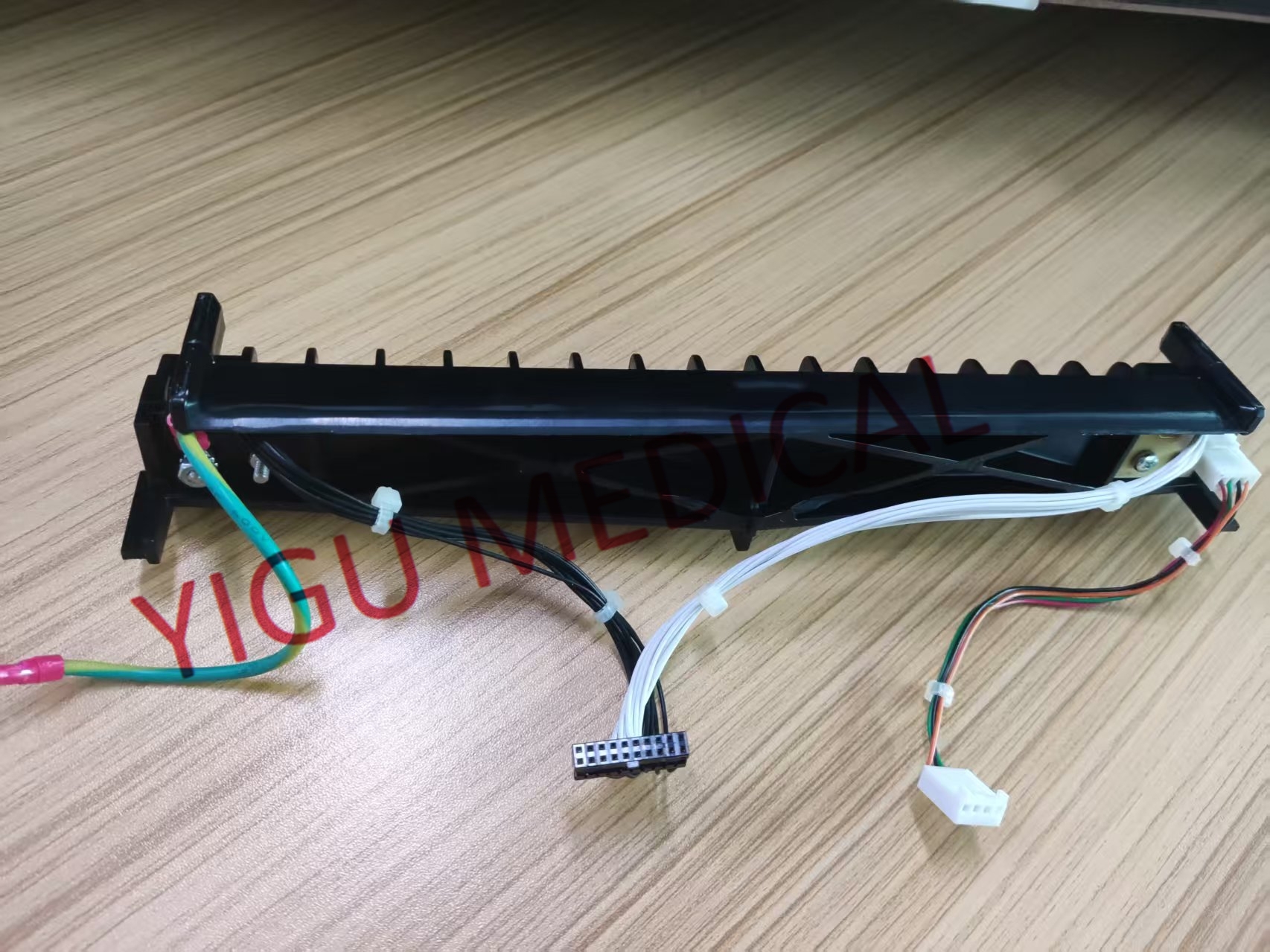

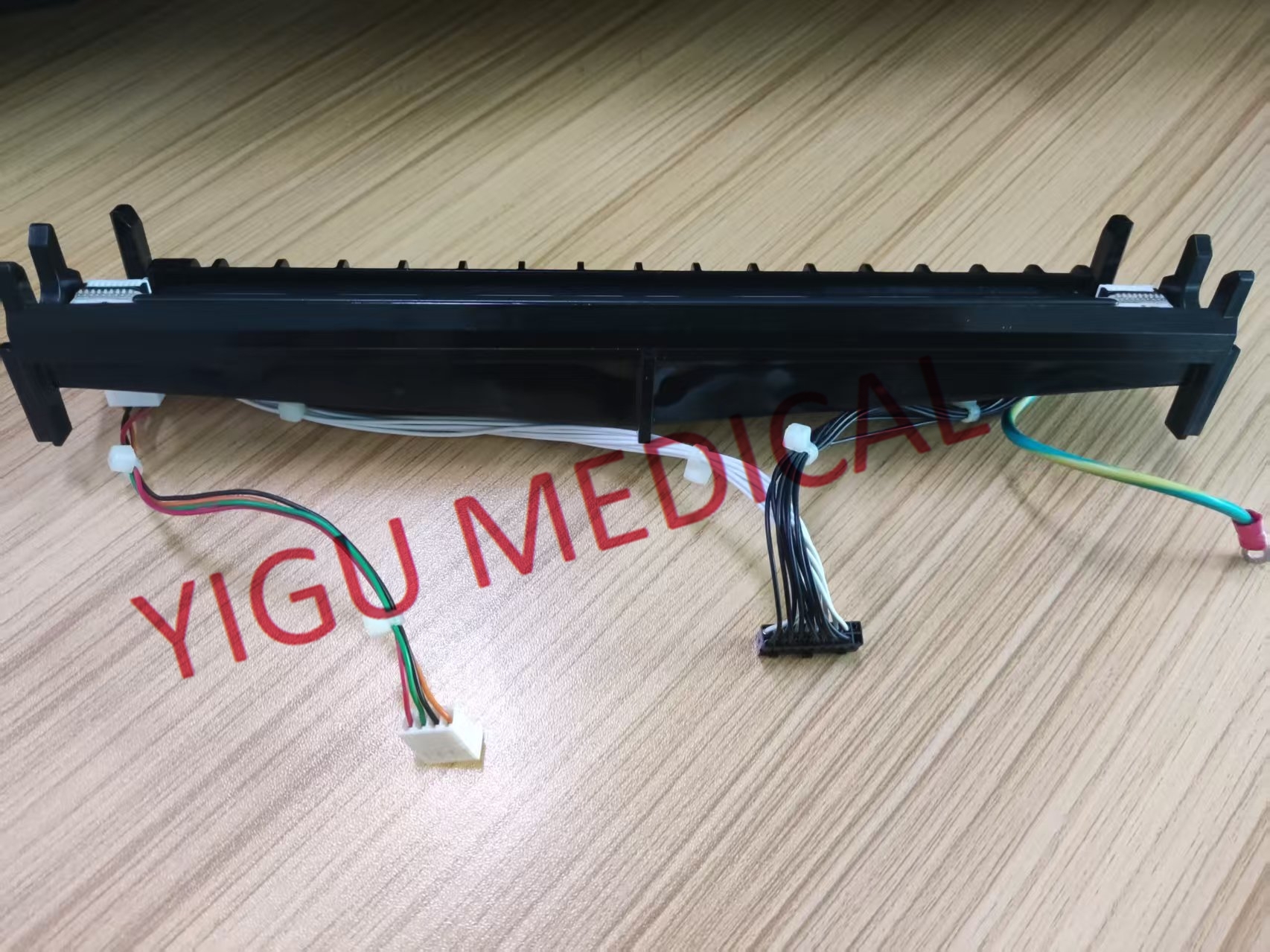

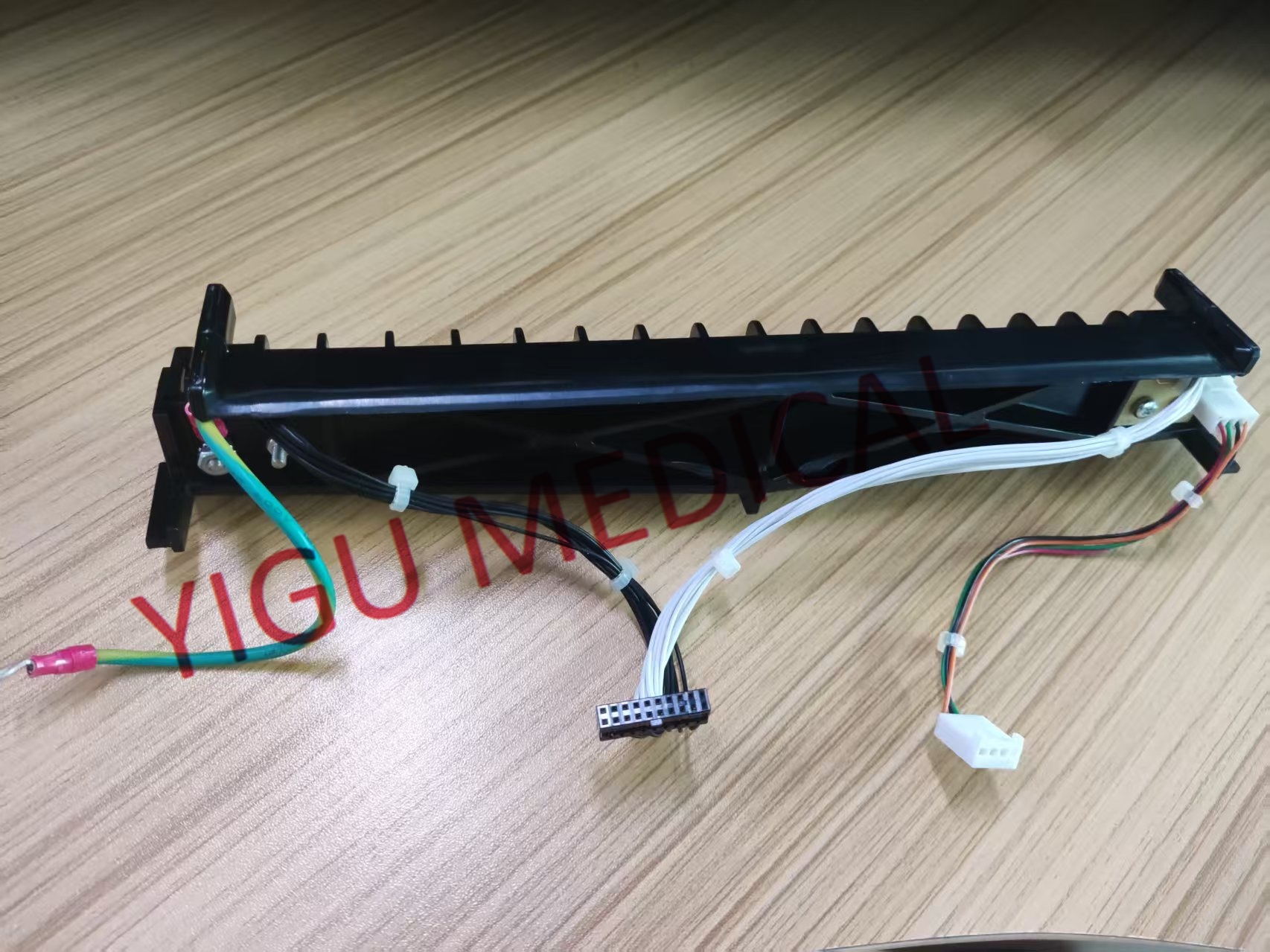

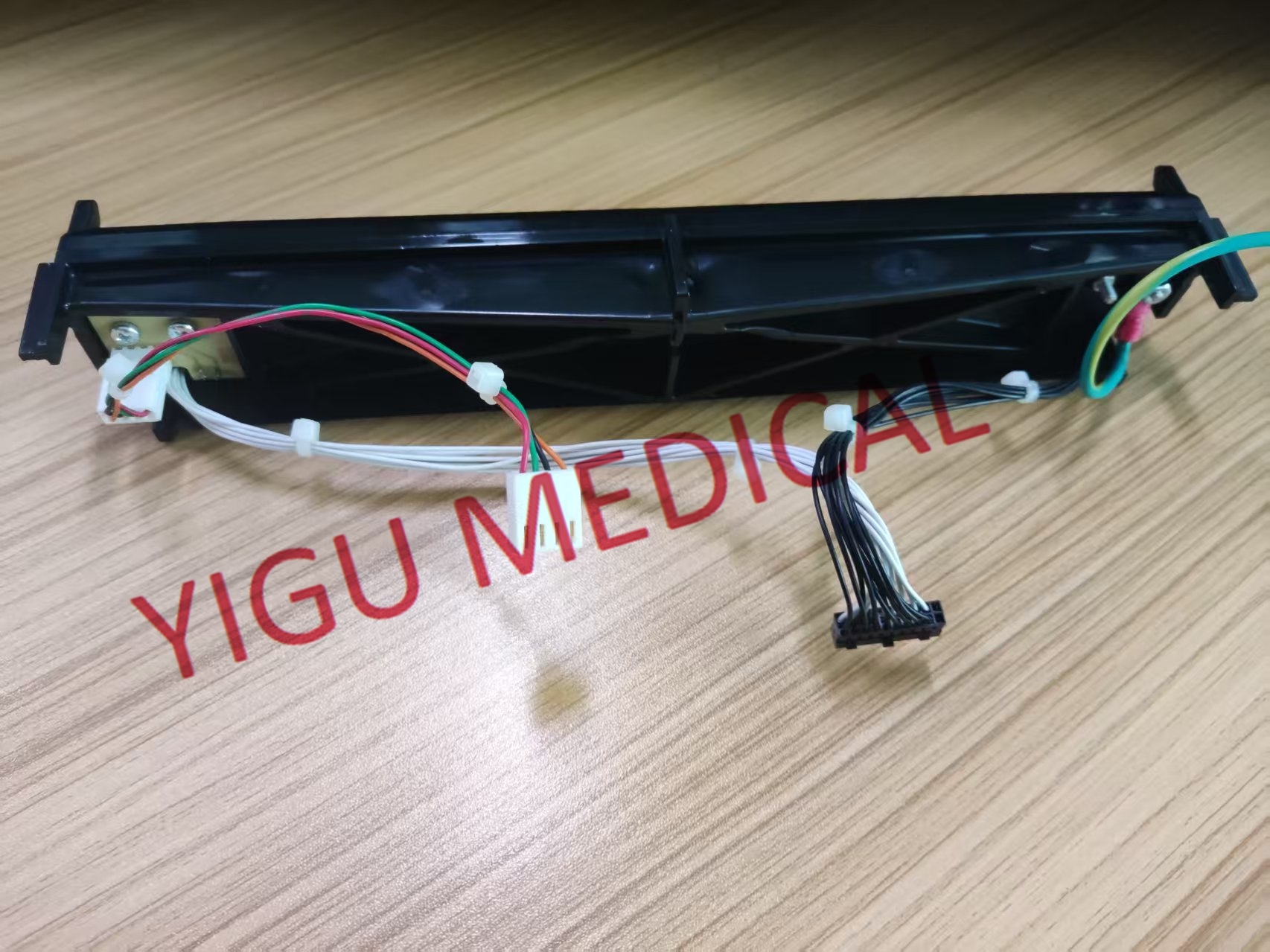

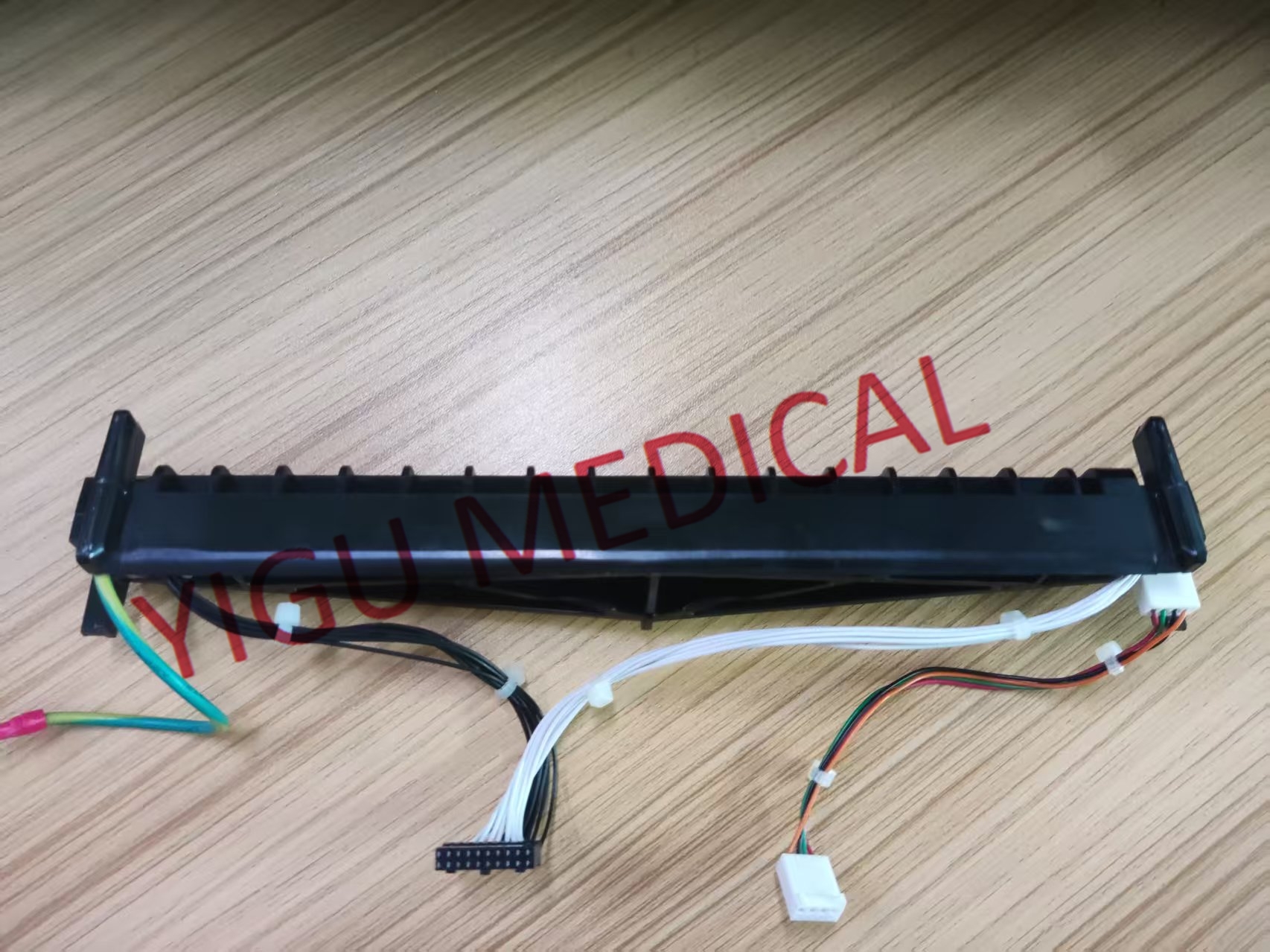

WELCH ALLYN CP150 printer head PN KA2008-AF10Z Patient monitor Printhead

This component is the consumable, user-replaceable thermal printhead assembly specifically designed for the **Welch Allyn CP150 Handheld Control Center** and its compatible vital signs monitors (like the Welch Allyn 150 series).

Overview

The Welch Allyn CP150 Printer Head is the core mechanical component responsible for creating hard copy printouts of patient vital signs data. It is a **direct thermal printhead**, meaning it uses heated elements to create an image on specially coated thermal paper, requiring no ink, toner, or ribbon.

Key Features and Functions

1. **Direct Thermal Technology:**
* **How it Works:** The printhead contains a linear array of tiny heating elements. To print, these elements heat up in a specific pattern corresponding to the data being printed. This heat activates the coating on the thermal paper, turning it black in the heated areas and creating characters, waveforms, and graphics.
* **Advantages:** This mechanism is simple, reliable, and quiet. It eliminates the need for messy ink cartridges or ribbons, making it ideal for the clean, fast-paced clinical environment.

2. **Print Capabilities:**
* It prints on standard **44.5 mm (1.75-inch) wide thermal paper rolls**.
* It typically produces printouts containing:
* Textual data: Patient ID, time, date, and all measured vital signs (NIBP, SpO₂, Temperature, Pulse, etc.).
* **Waveforms:** A key feature is its ability to print **ECG waveform strips** alongside the numerical data.
* Trends and summary reports.

3. **User-Replaceable Consumable:**
* Unlike the complex motherboards and interface cards discussed previously, the printhead is **designed to be replaced by the end-user** (nurses, clinicians, or biomedical staff) at the point of care.
* It has a finite lifespan and is considered a wear item. The heating elements eventually degrade with use, leading to fading print quality or failed prints.

4. **Physical Design:**
* It is a self-contained module that easily slides or snaps into a dedicated carriage within the printer assembly of the CP150 device.

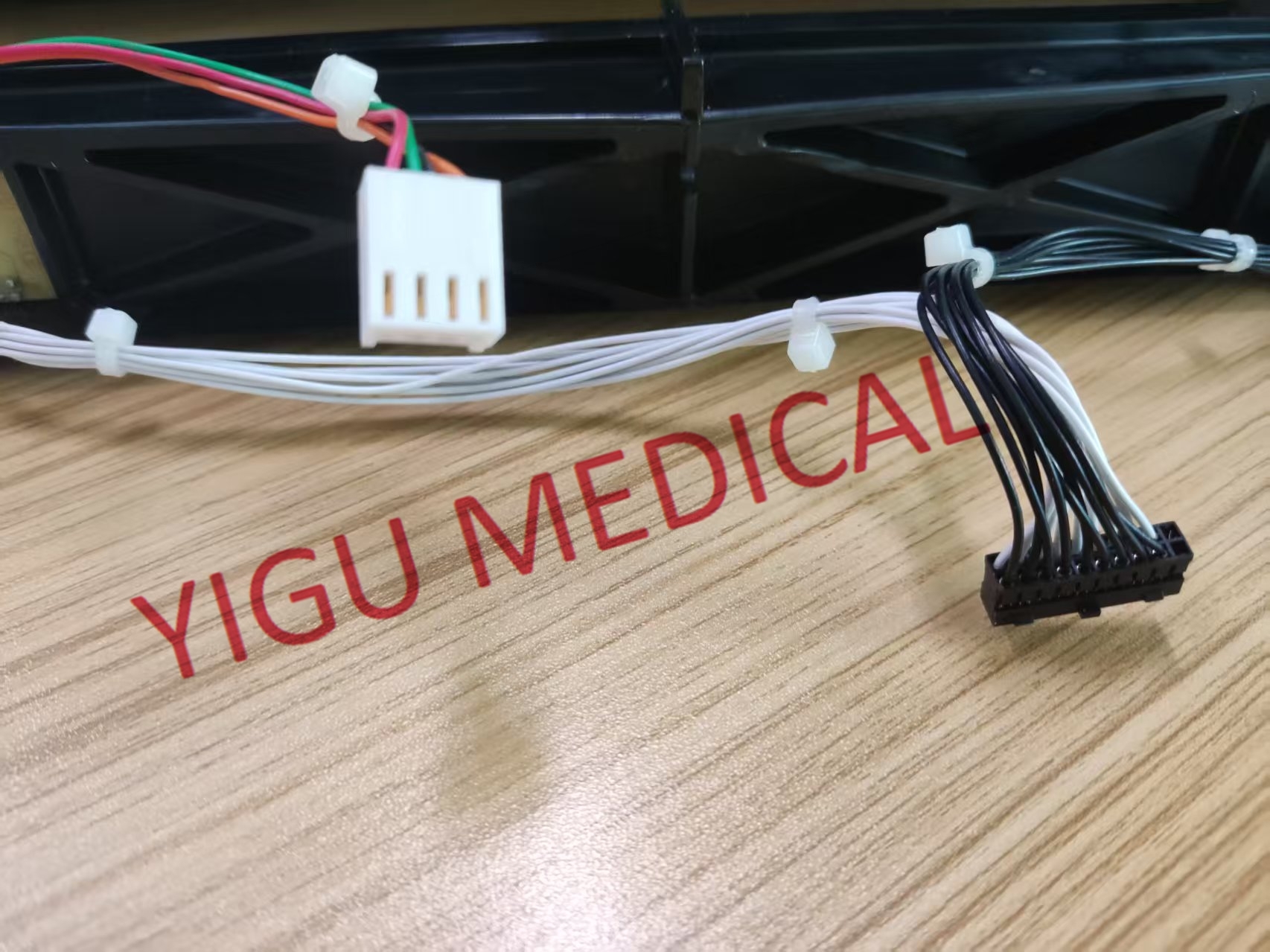

* It connects to the main printer mechanism via a simple electrical connector.

Importance in Clinical Workflow

The printer head is critical for generating a permanent physical record of patient vitals, which is essential for:
* **Charting:** Adding to a patient's physical paper chart.
* **Handoffs:** Providing a record during shift changes or patient transfers.
* **Procedures:** Documenting vitals before, during, or after a procedure.
* **Backup:** Serving as a hard copy backup where electronic medical record (EMR) integration may not be immediately available.

Symptoms of a Failing Printhead

* **Faint or Fading Print:** The most common sign. The printed text and waveforms become light, patchy, or incomplete.
* **White Lines in Printout:** Horizontal white lines appear across the printout, indicating that specific heating elements have burned out.
* **Complete Print Failure:** The printer mechanism moves the paper but produces no visible print at all.
* **Error Messages:** The CP150 device may display a printer error or "Check Printer" message.

* **Replacement:** Replacement is a straightforward process detailed in the device's user manual. It typically involves:
1. Opening the printer access door.
2. Releasing the old printhead (often by lifting a lever or tab).
3. Sliding the old printhead out.
4. Sliding the new printhead in until it clicks into place.
5. Closing the access door.
* **Calibration:** After replacement, it is often recommended to print a test page (usually by holding down the print button during power-up) to ensure alignment and print quality are correct.

Summary

In essence, the **Welch Allyn CP150 Printer Head** is a vital, consumable component that enables the crucial function of data documentation. Its direct thermal design offers simplicity and reliability for clinical use. As a user-replaceable part, recognizing the signs of its failure and knowing how to source and install a genuine replacement is key to maintaining the efficiency and documentation capabilities of the Welch Allyn CP150 vital

signs monitor.
