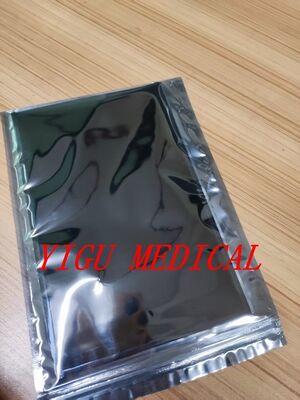

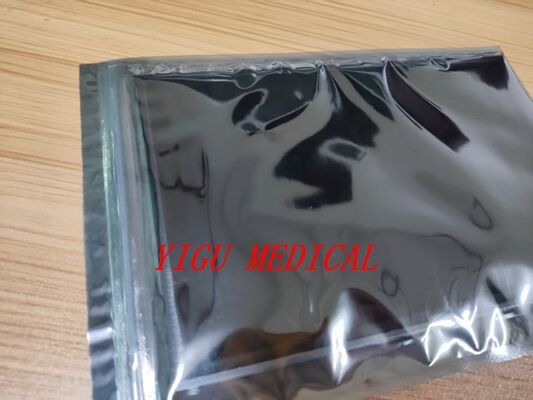

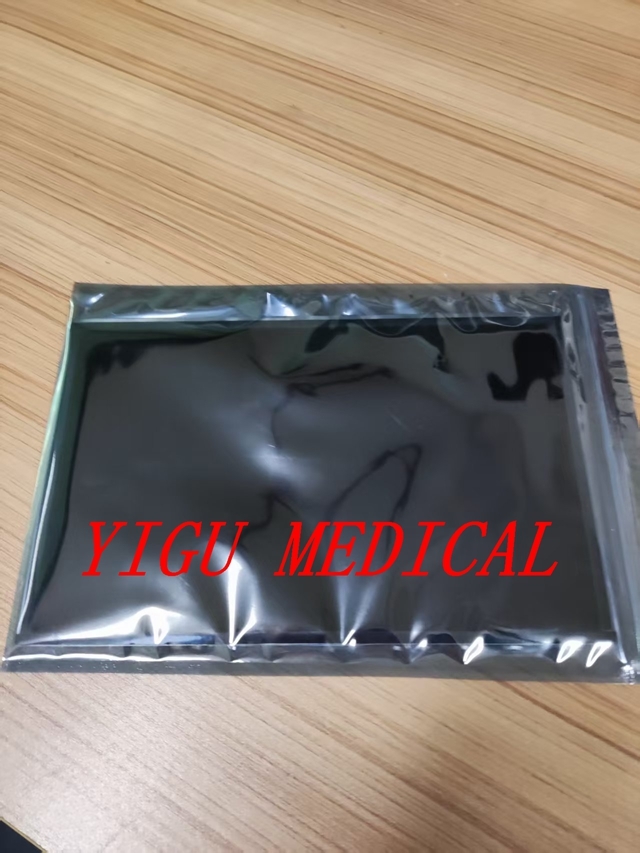

EFFICIA CM10 Patient Monitor LCD Screen PN: B101EW05 For New And Original Display

High-quality replacement LCD display screen for EFFICIA CM10 Patient Monitor systems. This display ensures optimal performance and reliability for medical monitoring equipment.

1. Overview of Efficia CM10 Patient Monitor
Efficia CM10 is a cost-effective, lightweight multi-parameter bedside patient monitor designed for general wards, emergency rooms, recovery rooms, and intra-hospital patient transport, compatible with adults, pediatrics, It delivers hospital-grade accurate vital sign monitoring with core clinical functions, balancing budget control and reliable measurement algorithms trusted for over 200 million patients globallyPhilips.
Core Clinical Monitoring Parameters
Standard Built-in Measurements
3/5-lead ECG with ST-segment analysis & ST/AR arrhythmia algorithm (detects 24 arrhythmia types)
FAST SpO₂ (stable readings under low perfusion or patient movement)
Respiration (thoracic impedance method)
Non-invasive blood pressure (NBP)
Dual-channel continuous temperature monitoring
Optional Expandable Modules
12-lead full ECG analysis
Dual invasive blood pressure (IBP)
Sidestream/mainstream EtCO₂ capnography
Cardiac output monitoring
QT/QTc interval calculation, renal drug calculator, auto night mode
Key Hardware & Functional Advantages
Lightweight & Portable: Dimension 270 × 220 × 170 mm, weight <3.3 kg (without battery); supports wall mount, rolling stand, and bedside placement
Dual Power Supply: AC mains + swappable lithium-ion batteries (3-cell: up to 2hrs transport; 9-cell: up to 9hrs continuous monitoring)
Comprehensive Data Storage & Review: Stores up to 240 hours tabular/graphical trend data; optional 48-hour full waveform disclosure for retrospective diagnosis
Alarm System: Combined high-volume audible alarms + color-coded visual screen alerts for life-threatening parameter deviations
Hospital Connectivity: LAN/WLAN optional, HL7 data interface to central monitoring stations; USB port for software upgrades and barcode patient ID input; optional built-in thermal recorder (58mm paper width)
Dustproof Membrane Buttons: Seamless physical control panel, easy disinfection for clinical hygiene; optional touchscreen upgrade for one-touch operationPhilips
Protection Grade: IPX1 splash-proof, resistant to routine clinical liquid splashes; stable operation 10–40°C clinical environment
2. Detailed Specification of Efficia CM10 LCD Screen

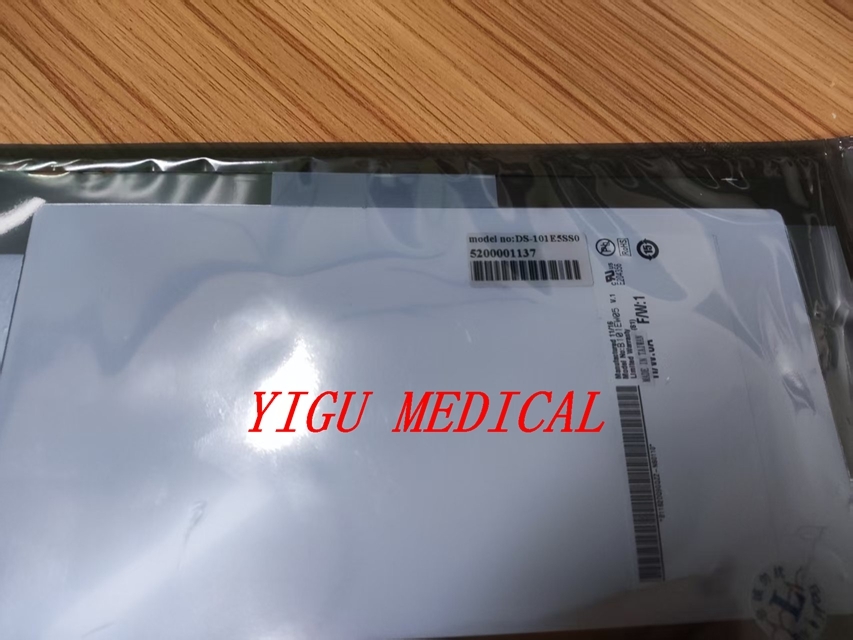

The CM10 equips a 10.1-inch wide-color industrial medical LCD panel (model B101EW05 as original replacement screen), optimized for long-hour clinical viewing with anti-glare, high contrast design.
Basic Hardware Parameters
Screen diagonal: 10.1 inches (25.6 cm)
Aspect ratio: 16:10 widescreen
Native resolution: WXGA 1280 × 800 pixels (HD sharpness for dense waveform display)
Refresh rate: 50/60 Hz flicker-free
Viewing tilt: The whole screen assembly supports ±15° mechanical rotation for ergonomic viewing from bed/standing anglesPhilips
Standard version: Passive LCD with physical button control
Optional upgrade: 5-wire resistive touch overlay on the same LCD panel, glove-friendly touch operation
Clinical Display Features
Multi-Waveform Layout Support: Simultaneously shows up to 8 real-time physiological waveforms (ECG, respiration, SpO₂ plethysmogram, IBP, CO₂ curve, etc.) with large color-coded numeric vital values for quick glance reading
Customizable Layouts: Pre-set templates for ICU, general ward, neonatal, and transport modes; adjustable waveform size, font scale, and alarm zone color marking
Auto Night Dimming Mode: Automatically reduces backlight brightness at night to avoid patient light disturbance without losing waveform clarity
High Contrast Medical Grade Backlight: Visible under strong ward overhead lighting; anti-reflective surface coating to eliminate screen glare
Alarm Priority Visual Hierarchy: Red critical alarm prompts, yellow caution reminders, grey system notifications are layered on the screen header without covering vital waveforms
Split-Screen Function: Displays real-time live data + short trend graphs side-by-side for continuous patient status tracking
Screen Durability & Replacement
The LCD panel is sealed against minor liquid splashes and medical disinfectant wipes
Original spare LCD module (B101EW05) is plug-and-play for biomedical maintenance; separate touch digitizer available if only touch function fails without LCD damage
